Design a Rate Limiter
Read the full breakdown on hellointerview.com
Understanding the Problem
🚦 What is a Rate Limiter? A rate limiter controls how many requests a client can make within a specific timeframe. It acts like a traffic controller for your API - allowing, for example, 100 requests per minute from a user, then rejecting excess requests with an HTTP 429 "Too Many Requests" response. Rate limiters prevent abuse, protect your servers from being overwhelmed by bursts of traffic, and ensure fair usage across all users.
Functional Requirements
For this breakdown, we'll design a request-level rate limiter for a social media platform's API. This means we're limiting individual HTTP requests (like posting tweets, fetching timelines, or uploading photos) rather than higher-level actions or business operations. We'll focus on a server-side implementation that controls traffic and protects our systems. While client-side rate limiting has value as a complementary approach (which we'll discuss later), server-side rate limiting is essential for security and system protection since clients can't be trusted to self-regulate.
Core Requirements
The system should identify clients by user ID, IP address, or API key to apply appropriate limits.
The system should limit HTTP requests based on configurable rules (e.g., 100 API requests per minute per user).
When limits are exceeded, the system should reject requests with HTTP 429 and include helpful headers (rate limit remaining, reset time).
Below the line (out of scope)
Complex querying or analytics on rate limit data
Long-term persistence of rate limiting data
Dynamic rule updates during runtime
Non-Functional Requirements
At this point, you should ask your interviewer about scale expectations. Are we building this for a startup API with thousands of requests per day, or for a major platform handling millions of requests per second? The scale will completely change our design choices.
We'll assume we're designing for a substantial but realistic load: 1 million requests per second across 100 million daily active users.
Core Requirements
The system should introduce minimal latency overhead (< 5ms per request check).
The system should be highly available. Eventual consistency is ok as slight delays in limit enforcement across nodes are acceptable.
The system should handle 1M requests/second across 10M daily active users.
Below the line (out of scope)
Strong consistency guarantees across all nodes
Complex rule management interfaces
Detailed analytics and reporting features
The Set Up
Planning the Approach
For a problem like this, you need to show flexibility when choosing the right path through the Hello Interview Delivery Framework. In fact, this is a famous question that is asked very differently by different interviewers at different companies. Some are looking for more low-level design, even code in some instances. Others are more focused on how the system should be architected and scaled.
In this breakdown, we'll follow the most common path (and the one I take when I ask this question) where we balance algorithm selection with high-level distributed system design that can handle the expected load.
I'll cover the simple set of core entities and system interface, then focus most of our time on rate limiting algorithms and scaling challenges - that's where the real design decisions happen.
Defining the Core Entities
While rate limiters might seem like simple infrastructure components, they actually involve several important entities that we need to model properly:
Rules: The rate limiting policies that define limits for different scenarios. Each rule specifies parameters like requests per time window, which clients it applies to, and what endpoints it covers. For example: "authenticated users get 1000 requests/hour" or "the search API allows 10 requests/minute per IP."
Clients: The entities being rate limited - this could be users (identified by user ID), IP addresses, API keys, or combinations thereof. Each client has associated rate limiting state that tracks their current usage against applicable rules.
Requests: The incoming API requests that need to be evaluated against rate limiting rules. Each request carries context like client identity, endpoint being accessed, and timestamp that determines which rules apply and how to track usage.
These entities work together: when a Request arrives, we identify the Client, look up applicable Rules, check current usage against those rules, and decide whether to allow or deny the request. The interaction between these entities powers our rate limiter.
System Interface
A rate limiter is an infrastructure component that other services call to check if a request should be allowed. The interface is straightforward:
isRequestAllowed(clientId, ruleId) -> booleanThis method takes a client identifier (user ID, IP address, or API key) and a rule identifier, then returns whether the request should be allowed based on current usage.
getCurrentUsage(clientId, ruleId) -> { remaining: number, resetTime: timestamp }This provides information for response headers like X-RateLimit-Remaining and X-RateLimit-Reset.
High-Level Design
We start by building an MVP that works to satisfy the core functional requirements. This doesn't need to scale or be perfect. It's just a foundation for us to build upon later. We will walk through each functional requirement, making sure each is satisfied by the high-level design.
1) The system should identify clients by user ID, IP address, or API key to apply appropriate limits
Before we can limit anyone, we need to make two key decisions. First, where should our rate limiter live in the architecture? This determines what information we have access to and how it integrates with the rest of our system. Second, how do we identify different clients so we can apply the right limits to the right users? These decisions are connected - your placement choice affects what client information you can easily access, and your identification strategy influences where the rate limiter makes sense to deploy.
Where should we place the rate limiter?
You have three main options here, each with different trade-offs:

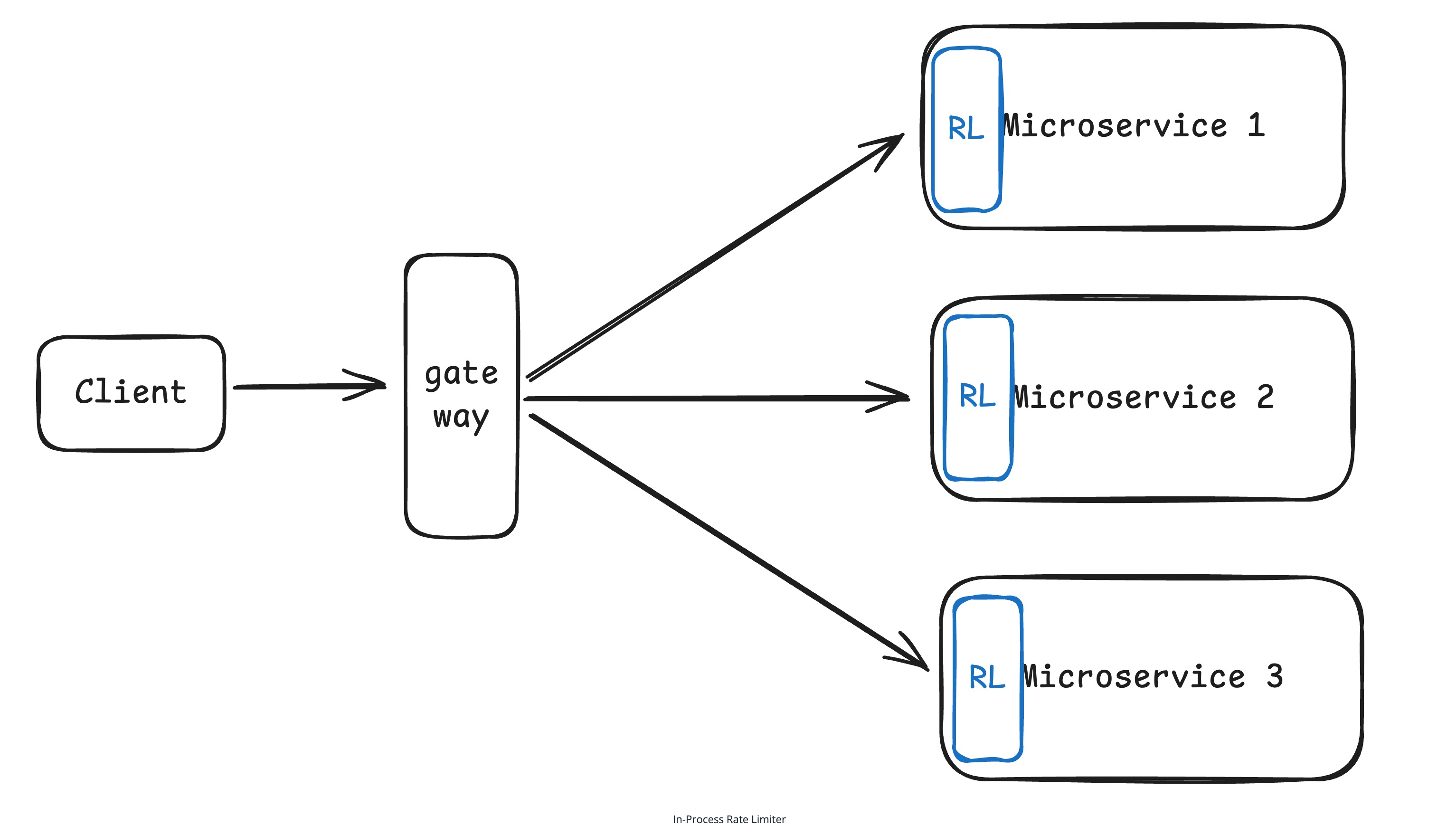

Bad Solution: In-Process
Approach
Each application server or microservice has rate limiting built directly into the application code. When a request comes in, the server checks its local in-memory counters, updates them, and decides whether to allow or reject the request. This is really fast since everything happens in memory, no network calls, no external dependencies.
Challenges
The main problem is that each server only knows about its own traffic, not the global picture. Say you want to limit users to 100 requests per minute. If you have 5 application servers behind a load balancer, and requests get distributed evenly, each server might see 20 requests per minute from a user and think "that's fine, well under 100." But globally, the user is actually making 100 requests per minute across all servers.
Even worse, if the load balancer changes how it routes traffic, or if one server gets more load than others, your limits become completely unpredictable. A user might get 100 requests through one server and 100 through another, for 200 total.
This approach only works if you have a single application server or if you're okay with approximate limits that can be off by a factor equal to your server count.

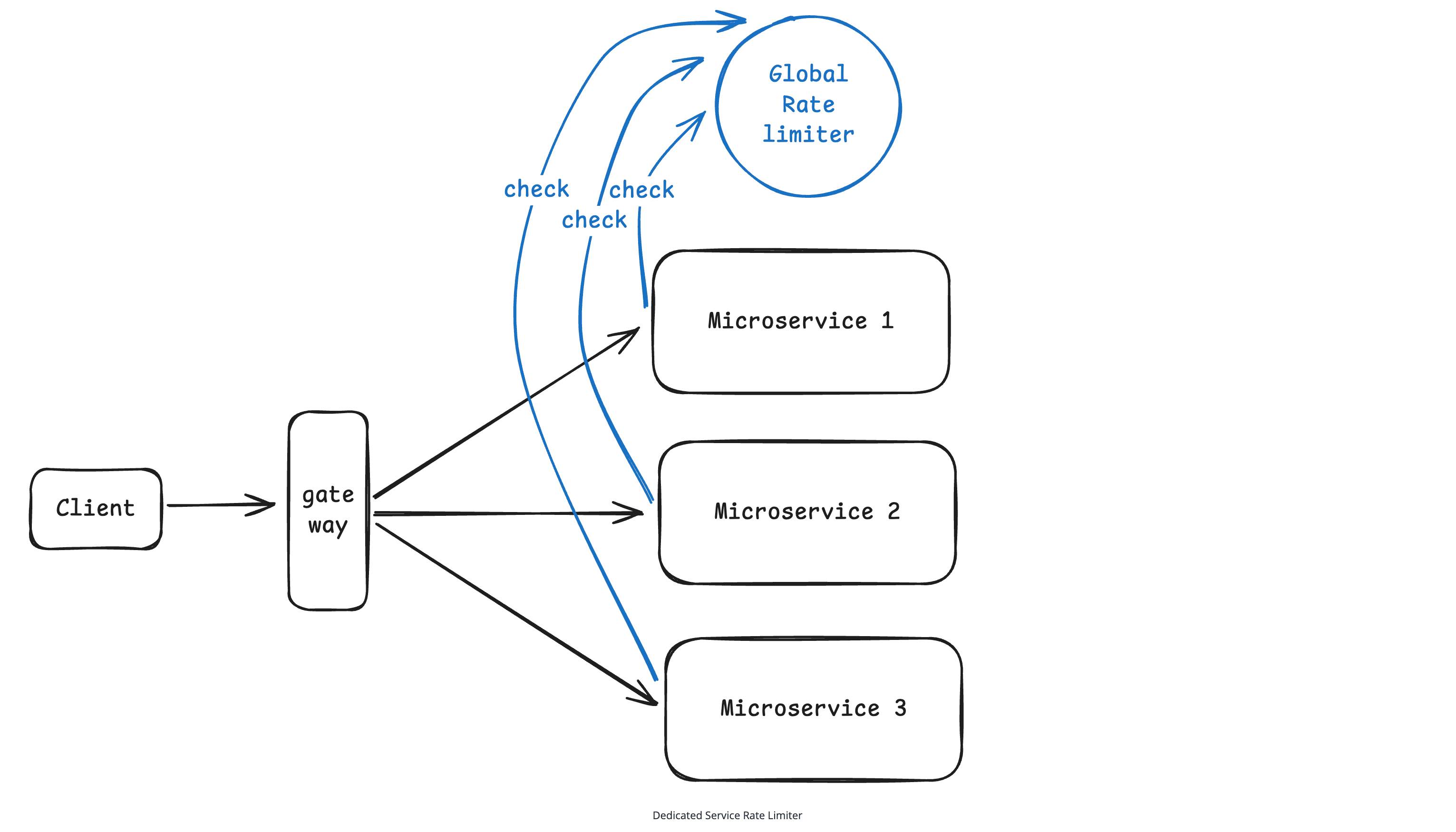

Good Solution: Dedicated Service
Approach
The rate limiter becomes its own microservice that sits between your clients and application servers. When a request arrives at an application server, the server first makes an API call to the rate limiting service: "Should I allow this request from user 12345?" The rate limiter checks its centralized counters and responds with either "yes, allow it" or "no, reject with 429."
This architecture gives you a lot more flexibility. Your application servers can provide rich context when making the rate limit check like user subscription tier, account status, the specific API endpoint being called, or even complex business logic like "allow extra requests during Black Friday." You can also have different rate limiting services for different parts of your system, each tuned for specific needs.
Most importantly, the rate limiting service maintains global state, so it can enforce precise limits across all your application servers. If you want 100 requests per minute globally, you get exactly that regardless of how many servers you have.
Challenges
The biggest downside is latency. Every single request to your system now requires an additional network round trip before it can be processed. Even if the rate limiter is fast (say 5ms), that's still 5ms added to every request. At scale, this adds up.
You've also introduced another point of failure. If your rate limiting service goes down, you need to decide: do you fail open (allow all requests through, risking overload) or fail closed (reject all requests, essentially taking your API offline)? Neither option is great.
There's operational complexity too. You now have another service to deploy, monitor, scale, and maintain. The rate limiting service itself needs to be highly available, which means you need redundancy, health checks, and probably some form of data replication.
Finally, you need to handle network issues gracefully. What if the rate limiter is slow to respond? Do you wait (adding more latency) or timeout and make a guess? What if there are network partitions between your app servers and the rate limiter?

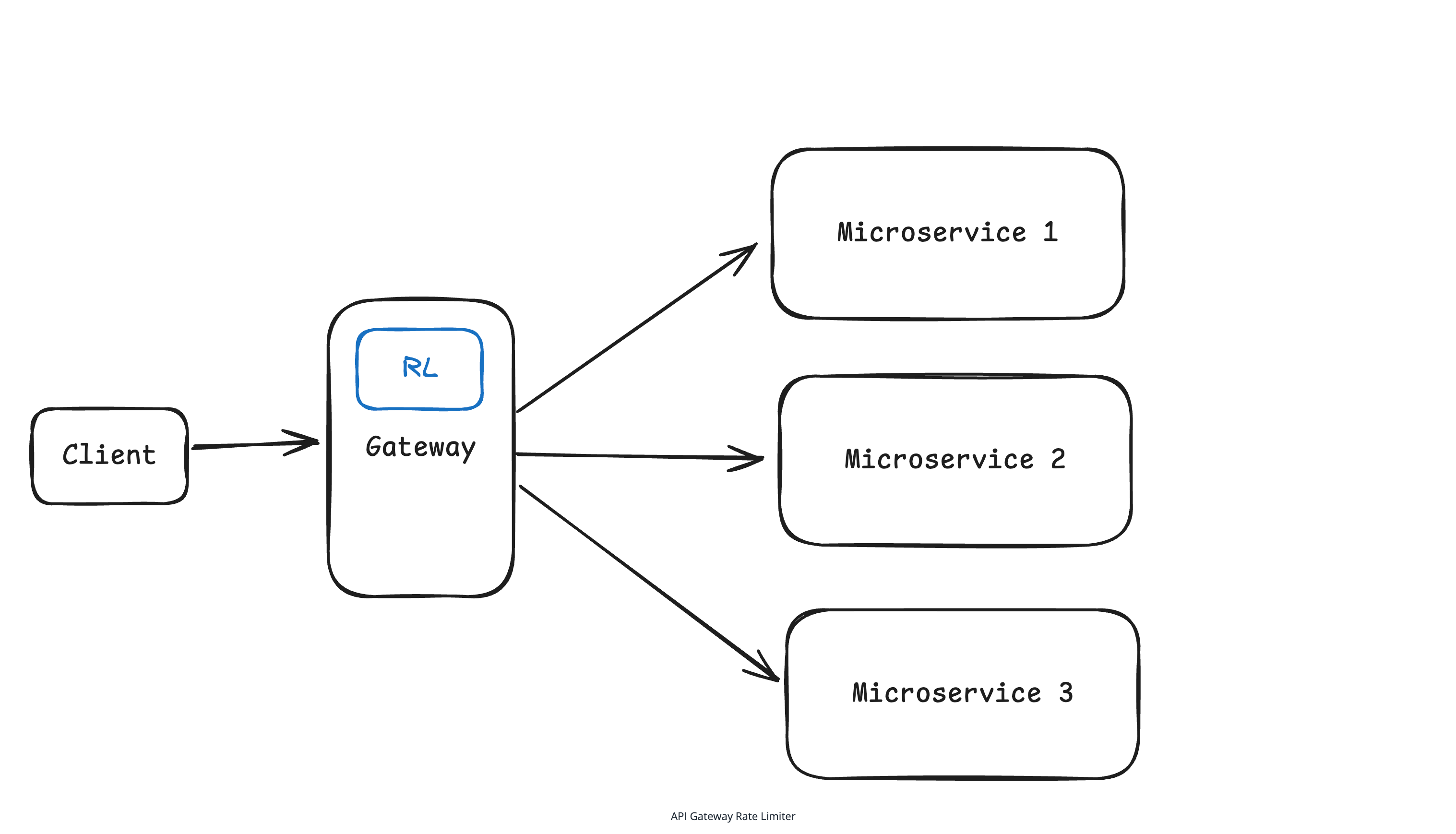

Great Solution: API Gateway/Load Balancer
Approach
The rate limiter runs at the very edge of your system, integrated into your API gateway or load balancer. Every incoming request hits the rate limiter first, before it reaches any of your application servers. The rate limiter examines the request (checking IP address, user authentication headers, API keys), applies the appropriate limits, and either forwards the request downstream or immediately returns an HTTP 429 response.
This is the most popular approach in production systems because it's conceptually simple and provides strong protection. Your application servers never see blocked requests, so they can focus entirely on processing legitimate traffic. For those who like analogies, the rate limiter acts like a bouncer at a club. Troublemakers get turned away at the door, not after they're already inside causing problems like was the case with our "Good" approach.
Challenges
The main limitation is context. The rate limiter only has access to information available in the HTTP request itself - headers, URL, IP address, and basic authentication tokens. It can't see deeper business logic or user context that might live in your application layer. For example, you can't easily implement rules like "premium users get 10x higher limits" unless that premium status is encoded in a JWT token or similar.
There's also the question of where to store the rate limiting state. The gateway needs fast access to counters and timestamps, which usually means an in-memory store like Redis. But now you have external dependencies and need to handle cases where Redis is slow or unavailable.
We'll talk all about how to do this effectively in our deep dives!
For our design, we'll go with the API Gateway approach. It's the most common pattern and gives us centralized control without adding extra network calls to every request. Now we can focus our attention to the next question, how do we identify clients?
How do we identify clients?
Since we chose the API Gateway approach, our rate limiter only has access to information in the HTTP request itself. This includes the request URL/path, all HTTP headers (Authorization, User-Agent, X-API-Key, etc.), query parameters, and the client's IP address. While we can technically make external calls to databases or other services, it adds latency we want to avoid so we'll stick to the request itself.
We first need to decide what makes a "client" unique. The key we use determines how limits get applied. We have three main options:
User ID: Perfect for authenticated APIs. Each logged-in user gets their own rate limit allocation. This is typically present in the Authorization header as a JWT token.
IP Address: Good for public APIs or when you don't have user accounts. But watch out for users behind NATs or corporate firewalls. The IP address is typically present in the X-Forwarded-For header.
API Key: Common for developer APIs. Each key holder gets their own limits. Most typically, this is denoted in the X-API-Key header.
This is the perfect time to ask your interviewer some questions. Are all users authenticated? Is this a developer API that requires API keys? etc.
In practice, you'll probably want a combination. Maybe authenticated users get higher limits than anonymous IPs, and premium users may get even more. This is reflective of real systems that don't just enforce a global limit, but layer multiple rules. For example:
Per-user limits: "Alice can make 1000 requests/hour"
Per-IP limits: "This IP can make 100 requests/minute"
Global limits: "Our API can handle 50,000 requests/second total"
Endpoint-specific limits: "The search API is limited to 10 requests/minute, but profile updates are 100/minute"
Your rate limiter needs to check all applicable rules and enforce the most restrictive one. If Alice has used 50 of her 1000 requests but her IP has hit the 100 request limit, she gets blocked.
2) The system should limit requests based on configurable rules
Now we get to the heart of rate limiting: the algorithm that decides whether to allow or reject requests. This is where the real engineering decisions happen but it's not commonly the central focus of a system design interview (unlike a low-level design interview). You'll want to acknowledge that you understand the different options and make a choice, but it's unlikely you'll need to implement it, even with pseudocode.
There are four main algorithms used in production systems, each with different trade-offs around accuracy, memory usage, and complexity. We'll examine each one to understand when you'd choose it.

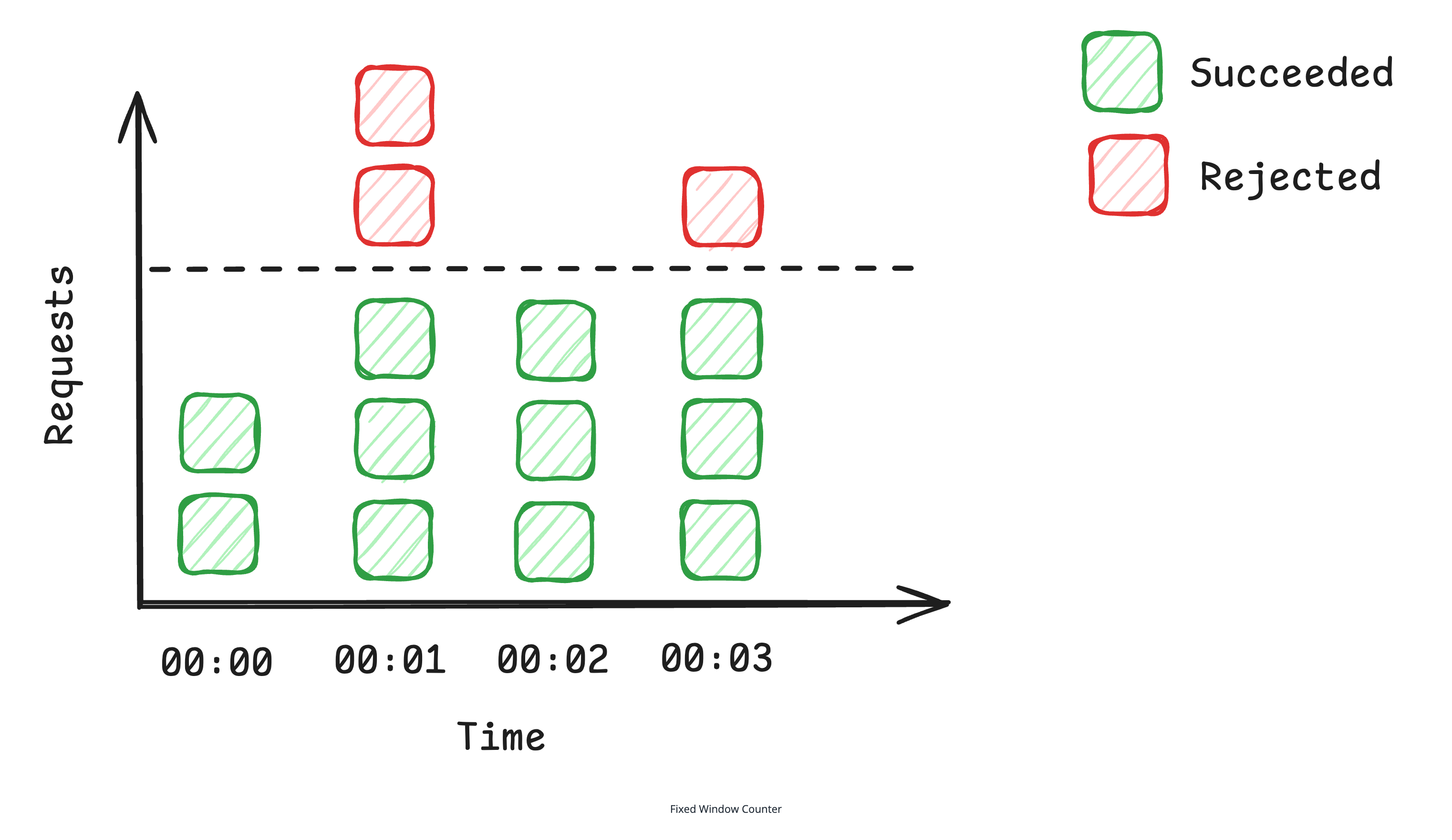

Fixed Window Counter
The simplest approach divides time into fixed windows (like 1-minute buckets) and counts requests in each window. For each user, we'd maintain a counter that resets to zero at the start of each new window. If the counter exceeds the limit during a window, reject new requests until the window resets.
For example, with a 100 requests/minute limit, you might have windows from 12:00:00-12:00:59, 12:01:00-12:01:59, etc. A user can make 100 requests during each window, then must wait for the next window to start.
This is really simple to implement. It's just a hash table mapping client IDs to (counter, window_start_time) pairs. The main challenges are boundary effects: a user could make 100 requests at 12:00:59, then immediately make another 100 requests at 12:01:00, effectively getting 200 requests in 2 seconds. There's also potential for "starvation" if a user hits their limit early in a window.
{
"alice:12:00:00": 100,
"alice:12:01:00": 5,
"bob:12:00:00": 20,
"charlie:12:00:00": 0,
"dave:12:00:00": 54,
"eve:12:00:00": 0,
"frank:12:00:00": 12,

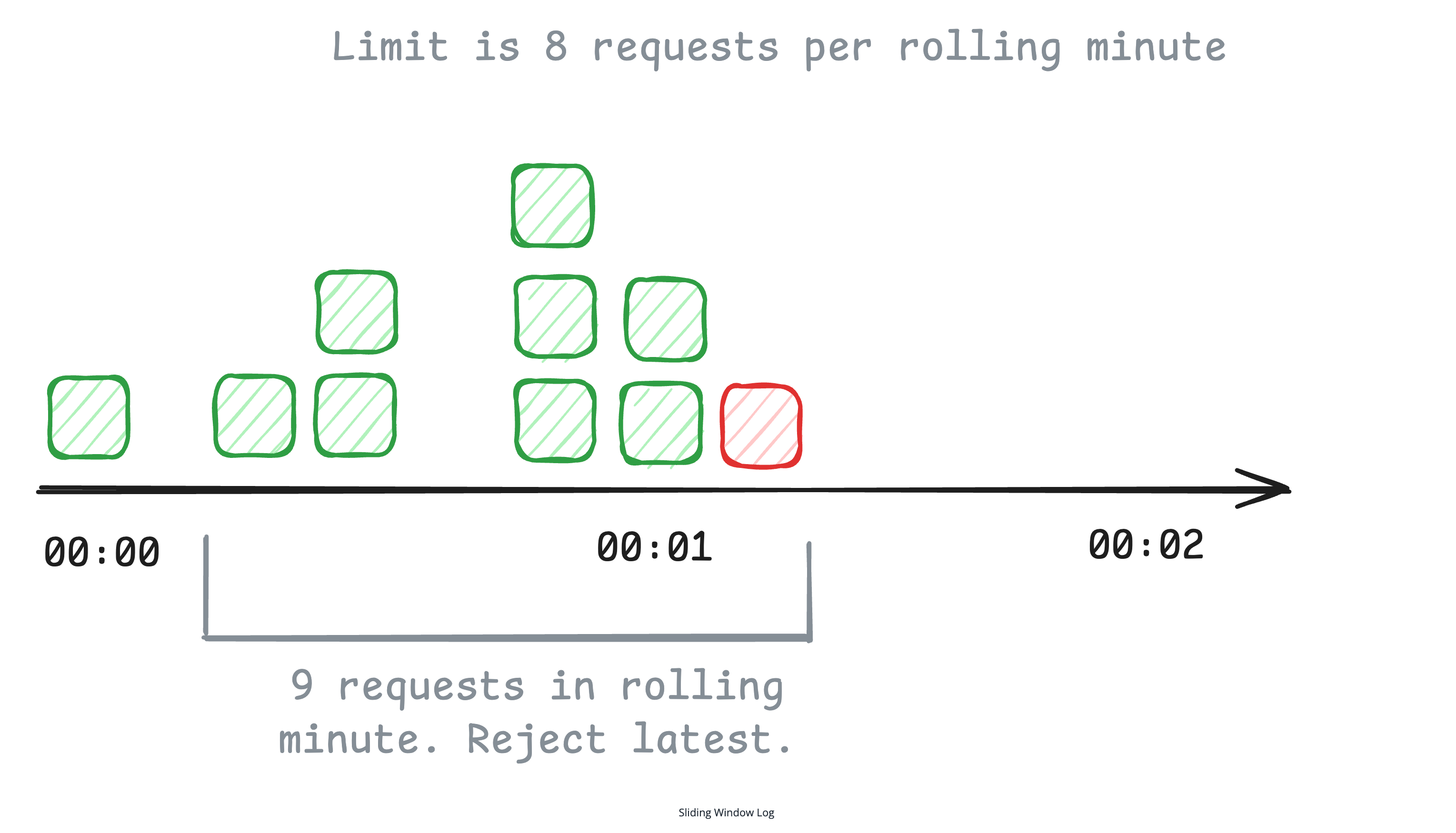

}Sliding Window Log
This algorithm keeps a log of individual request timestamps for each user. When a new request arrives, you remove all timestamps older than your window (e.g., older than 1 minute ago), then check if the remaining count exceeds your limit.
This gives you perfect accuracy. You're always looking at exactly the last N minutes of requests, regardless of when the current request arrives. No boundary effects, no unfair bursts allowed.
The downside is memory usage. For a user making 1000 requests per minute, you need to store 1000 timestamps. Scale this to millions of users and you quickly run into memory problems. There's also computational overhead scanning through timestamp logs for each request.
Sliding Window Counter
This is a clever hybrid that approximates sliding windows using fixed windows with some math. You maintain counters for the current window and the previous window. When a request arrives, you estimate how many requests the user "should have" made in a true sliding window by weighing the previous and current windows based on how far you are into the current window.
For example, if you're 30% through the current minute, you count 70% of the previous minute's requests plus 100% of the current minute's requests.
This gives you much better accuracy than fixed windows while using minimal memory. It's just two counters per client. The trade-off is that it's an approximation that assumes traffic is evenly distributed within windows, and the math can be tricky to implement correctly.

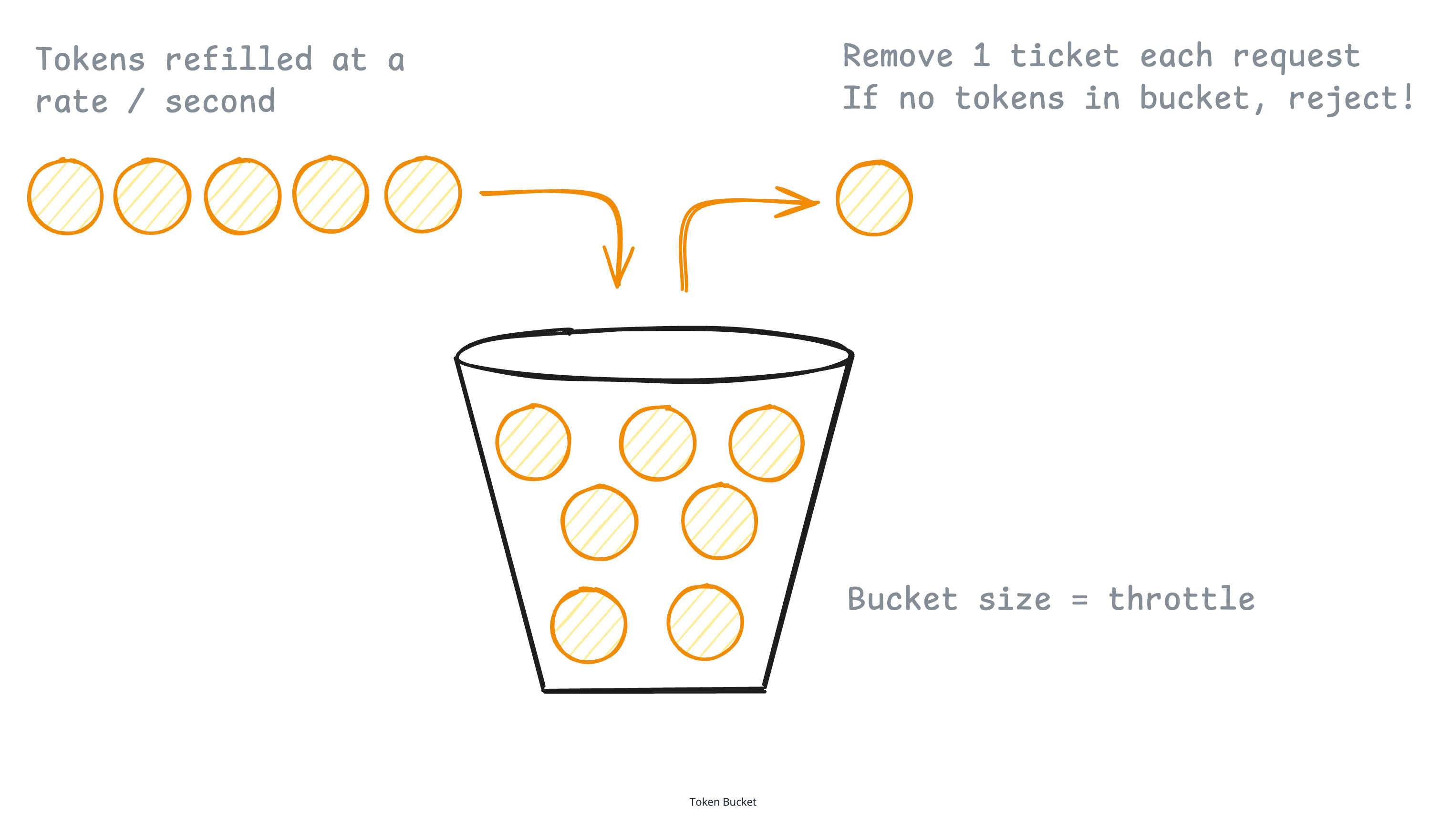

Token Bucket
Think of each client having a bucket that can hold a certain number of tokens (the burst capacity). Tokens are added to the bucket at a steady rate (the refill rate). Each request consumes one token. If there are no tokens available, the request is rejected.
For example, a bucket might hold 100 tokens (allowing bursts up to 100 requests) and refill at 10 tokens per minute (steady rate of 10 requests/minute). A client can make 100 requests immediately, then must wait for tokens to refill.
This handles both sustained load (the refill rate) and temporary bursts (the bucket capacity). It's also simple to implement, you just track (tokens, last_refill_time) per client. The challenge is choosing the right bucket size and refill rate, and handling "cold start" scenarios where idle clients start with full buckets.
For our system, we'll go with the Token Bucket algorithm. It strikes the best balance between simplicity, memory efficiency, and handling real-world traffic patterns. Companies like Stripe use this approach because it naturally accommodates the bursty nature of API traffic while still enforcing overall rate limits.
Now we have a new problem. We know how the Token Bucket algorithm works conceptually, but where and how do we actually store each user's bucket? Each bucket needs to track two pieces of data: the current token count and the last refill timestamp. This state needs to be shared across all our API gateway instances.
If we store the buckets in memory within each gateway instance, we're back to the same coordination problem we discussed with in-process rate limiting. User requests get distributed across multiple gateways by the load balancer. Each gateway would maintain its own version of a user's token bucket, seeing only a fraction of their total traffic.
For example, if Alice makes 50 requests that go to Gateway A and 50 requests that go to Gateway B, each gateway thinks Alice has only made 50 requests and allows them all. But globally, Alice has made 100 requests and should be rate limited. Our algorithm becomes useless without centralized state.
We can use something like Redis. Redis is a fast, in-memory data store that all our gateway instances can access. Redis can become our central source of truth for all token bucket state. When any gateway needs to check or update a user's rate limit, it talks to Redis.
Here's exactly how the Token Bucket algorithm works with Redis:
A request arrives at Gateway A for user Alice with a user ID of alice.
The gateway calls Redis to fetch Alice's current bucket state using HMGET alice:bucket tokens last_refill. The HMGET command retrieves the values of multiple keys from a Redis hash. In this case, we're getting the current tokens count and the last_refill timestamp for Alice's bucket.
The gateway calculates how many tokens to add to Alice's bucket based on the time elapsed since her last refill. If Alice's bucket was last updated 30 seconds ago and her refill rate is 1 token per second, the gateway adds 30 tokens to her current count, up to the bucket's maximum capacity.
The gateway then updates Alice's bucket state atomically using a Redis transaction to prevent race conditions:
MULTI
HSET alice:bucket tokens <new_token_count>
HSET alice:bucket last_refill <current_timestamp>
EXPIRE alice:bucket 3600
EXECThe MULTI/EXEC block ensures all commands execute as a single atomic operation. The HSET commands update the hash fields with the new token count and timestamp, while EXPIRE automatically deletes the bucket after 1 hour of inactivity to prevent memory leaks.
Finally, the gateway makes the final decision based on Alice's updated token count. If she has at least 1 token available, the gateway allows the request and decrements her token count by 1. If she has no tokens remaining, the gateway rejects the request.
But wait - there's a race condition!
Despite the MULTI/EXEC transaction, our implementation still has a subtle race condition. The problem is that the read operation (HMGET) happens outside the transaction. If two requests for the same user arrive simultaneously, both gateways read the same initial token count, both calculate that they can allow the request, and both update the bucket. This means we could allow 2 requests when only 1 token was available.
The solution is to move the entire read-calculate-update logic into a single atomic operation. With Redis, this can be achieved using something called Lua scripting. Lua scripts are atomic, so the entire rate limiting decision becomes race-condition free. Instead of separate read and write operations, we send a Lua script to Redis that reads the current state, calculates the new token count, and updates the bucket all in one atomic step.
Why Redis works perfectly for this:
Speed - Sub-millisecond responses for simple operations
Automatic cleanup - EXPIRE removes inactive user buckets after 1 hour of no activity
High availability - Can be replicated across multiple Redis instances
Atomic operations - The MULTI/EXEC transaction ensures no race conditions between gateways
The end result is precise, consistent rate limiting across all gateway instances. Whether Alice's 100th request goes to Gateway A, B, or C, they all see the same token bucket state and enforce the same limit.
3) When limits are exceeded, reject requests with HTTP 429 and helpful headers
Now we need to decide what happens when a user hits their rate limit. This might seem straightforward (just return an error) but there are important design decisions that affect both user experience and system performance.
Should we drop requests or queue them?
The first decision is whether to immediately reject excess requests or queue them for later processing. Most rate limiters take the "fail fast" approach, they immediately return an HTTP 429 status code when limits are exceeded. This is what we'll implement.
The alternative would be queuing excess requests and processing them when the user's rate limit resets. While this sounds user-friendly, it creates more problems than it solves. Queued requests consume memory and processing resources. Users might think their requests failed and retry, creating even more load. Worst of all, queue processing delays make your API response times unpredictable.
There are niche cases where queuing makes sense, like batch processing systems that can afford to wait, but for interactive APIs, fast failure is almost always the right choice.
How can we make the response helpful?
When rejecting a request, we return HTTP 429 "Too Many Requests" along with headers that help clients understand what happened and how to recover. The key headers are:
X-RateLimit-Limit: The rate limit ceiling for that request (e.g., "100")
X-RateLimit-Remaining: Number of requests left in the current window (e.g., "0")
X-RateLimit-Reset: When the rate limit resets, as a Unix timestamp (e.g., "1640995200")
Some systems also include Retry-After, which tells the client how many seconds to wait before trying again.
Here's what a complete 429 response might look like:
HTTP/1.1 429 Too Many Requests
X-RateLimit-Limit: 100
X-RateLimit-Remaining: 0
X-RateLimit-Reset: 1640995200
Retry-After: 60
Content-Type: application/json
{
"error": "Rate limit exceeded",
"message": "You have exceeded the rate limit of 100 requests per minute. Try again in 60 seconds."
}These headers allow well-behaved clients to implement proper backoff strategies. A client can see exactly when to retry rather than hammering your API with failed requests.
As far as the interview goes, you'll typically just want to callout that you know you'll respond with a 429 and the appropriate headers.
